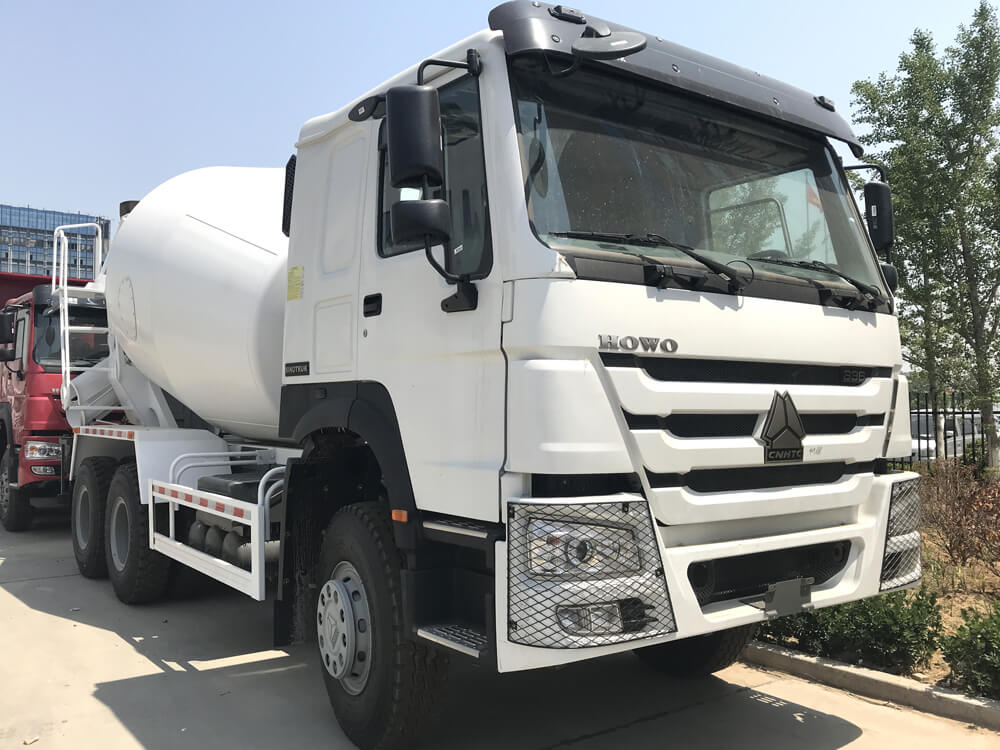

HOWO CONCRETE MIXER TRUCK

Driving Type: 6×4 / 10 Wheels / 3 Axles
Horse Power: 336HP / 371HP
Transmission: HW19710, 10F & 2R
Mixer Body Size: 8CBM / 10CBM / 12CBM

Category:
Description

Truck Model

ZZ1257N3847W

Driving Type

Left Hand Driving (Right Hand Driving is optional)

Cabin

HW76, single berthtwo seats, safety belts and air condition

Hydraulically damped adjustable driver’s seat with heating and ventilating system

Four point support floating suspension and shock absorber with transverse stabilizer

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine Model: WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and inter cooling

Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front Axle

HF9, 1×9000 KGS

Steering with double T-cross section beam

Rear Axle

HC16, 2×16000 KGS; Ratio: 5.73

Pressed axle housing, central single reduction with hub reduction, with differential locks between wheels and axles.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm, reinforced sub frame all cold riveted cross members

Front Suspension: 10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear Suspension: 12 leaf semi elliptic springs, bogie spring and stabilizer

Brake System

Service Brake: Dual circuit compressed air brake

Parking Brake (Emergency Brake): Spring energy, compressed air operating on front shaft and rear wheels

Auxiliary Brake: Engine exhaust brake

Electrics System

Operating Voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20 radial tyres with one spare tyre

Fuel Tank

400L

Mixer Body

10 Cubic Meters; Thickness 5mm

Mixer Pump – America Eaton; Motor – America Eton; Reducer – Italy Bonfiglioli

Overall Dimension

9250x2550x3950 mm
